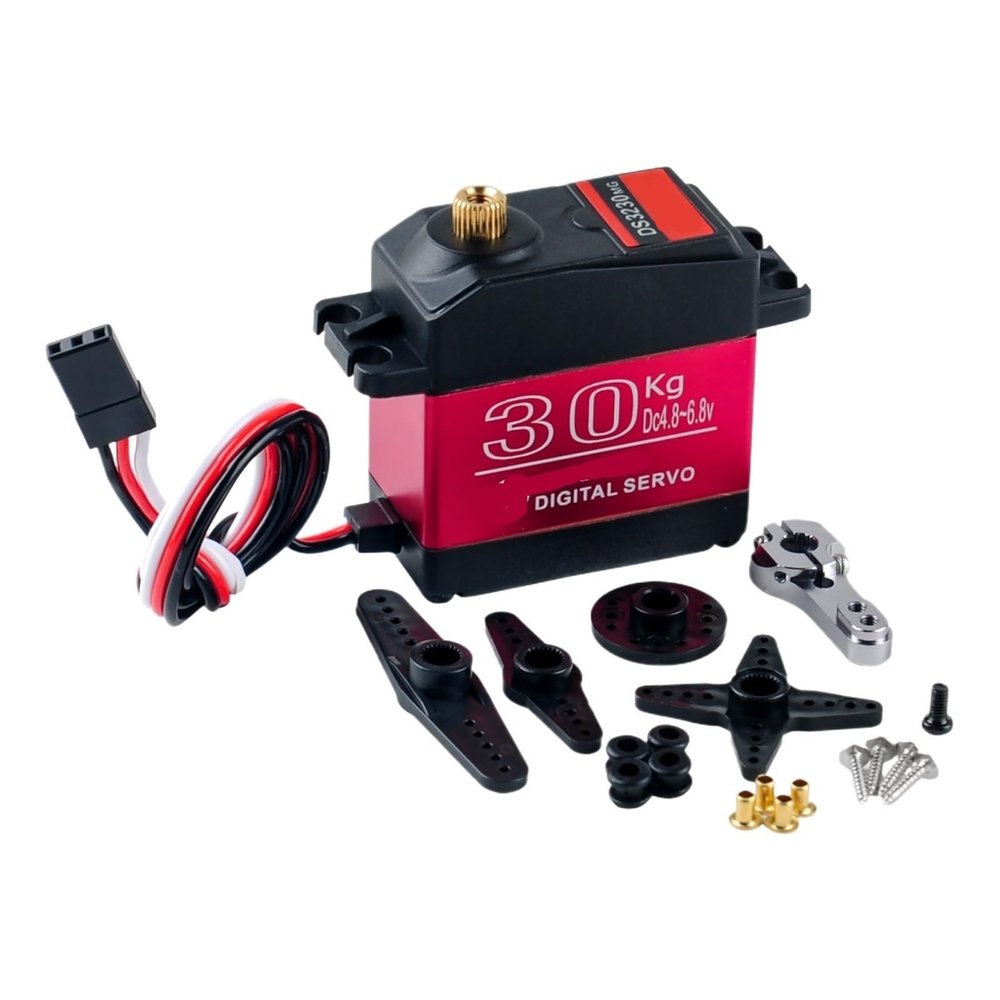

1X 20/25/30/35/40kg Digital Servo Waterproof IP66 RC Servo for 1/8 1/10 Scale High Speed Metal Gear High Torque(DS3230-270)

Description

• Servos

Servos
20KG DS3218 digital servo with 25T servo arm, metal remote control toy, waterproof 180 degrees / 270 degrees

Specification:
Stall Torque (5V): 19 kg/cm (263.8 oz/in)
Stall Torque (6.8V): 21.5 kg/cm (298.5 oz/in)
Dead zone: 3s
Speed: 0.16 sec/60 (5V) / 0.14 sec/60 (6.8V)
Working voltage: 4.8~6.8V DC
Motor type: DC motor
Gear Type: Copper and Aluminum
Working frequency 1520s 333hz
CE certification is
Dimensions 40 x 20 x 405 mm (1.58 x 0.79 x 1.60 in)
Package Includes:
1 X DS3218 Digital Servo 20KG
1 X 25T Servo Arm
25KG RDS3225 digital metal servo 4.8-6.8V waterproof IP66
Specification:
Storage temperature range: -30~80
Operating temperature range: -15~70
Operating voltage range: 4.8-6.8V
Size: 40*20*40mm
Weight: 60 g
Gear Ratio: 342
Bearing double: bearing
Connecting wire: 3005mm
3-pole motor
Waterproof performance: No
Working voltage: 5V 6.8V
Idle current (when stopped) 4mA 5mA
Working speed (no load) 0.2 seconds/60 0.17 seconds/60
Stall torque (locked) 29.5 kg-cm 34.5 kg-cm
Stall current (locked) 2.1A 2.9A
Control system: PWM (Pulse Width Modulation)
Pulse width range: 500-2500 seconds
Neutral position: 1500 seconds
Operating angle: 180 or 270 (500-2500 seconds)
Dead zone width: 3 seconds
Working frequency: 50-330Hz
Rotation direction: counterclockwise (500-2500 seconds)
Package Includes:
1 X RDS3225 Digital Metal Server
1 X Long U-Shaped Metal Bracket
1 X Short U-shaped metal bracket
2 X 25T Metal Servo Arms
1 X Seven Screws
30KG 6V DS3230 high torque digital servo 180 degree waterproof IP66 with 25T servo arm
Specification:
Torque: 29.5kg/cm (at 5V), 34.5kg/cm (at 6.8V);
Motor type: DC motor;
Speed: 0.2 sec/60 (5V)/0.17 sec/60 (6.8V);
Weight: 60 g (2.12 oz);
Working voltage: 4.8~6.8 DC volts; Dead time: 3s;
Dimensions: 40 x 20 x 40.5
