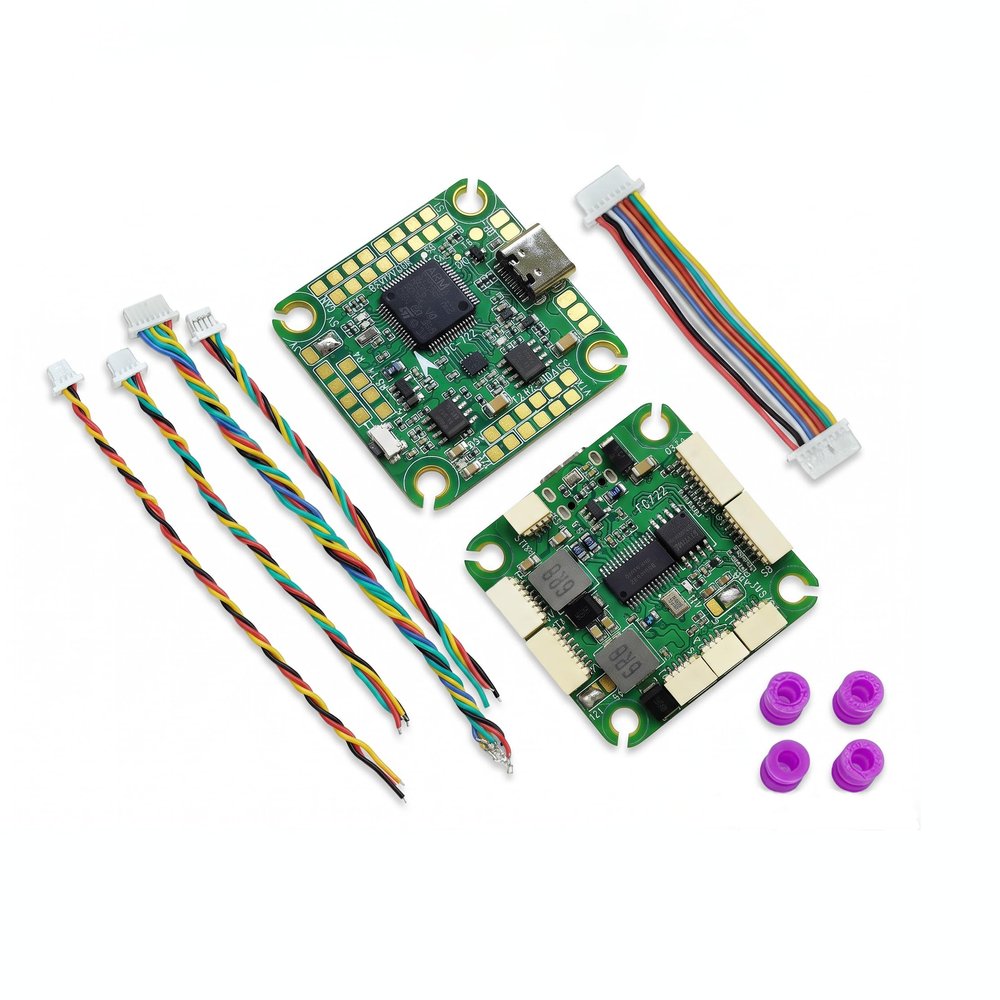

DYS F7 F722 Flight Controller 30x30 AM32 65A 4in1 2-8S Brushless ESC for Racing Drone Freestyle FPV Drone Quadcopter (FC722)

Description

• Integrated 3.3V/5V/12V BEC ensures stable operation
• Camera, receiver, HD/ analog two-in-one direct plug interface.
• Using large solder pads, the pads are kept away from the components to ensure perfect soldering for beginners.
• The flight control has four LED status indicators, which display the working status under different states.
• Support Bluejay firmware, bidirectional DSHOT, and enable RPM filtering.

Features:
FC STM32F722 Flight Controller
Top Features:
Improved circuit design, better components and lower electrical noise!
HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
With LC filter

Specifications:
MCU: STM32F722
Gyro: ICM42688P
Barometer: BMP280
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6Prot
Motor outputs: 4x (SH1.0 connector)
I2C serial: SDA / SLA pads
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes
Firmware target: BETAFLIGHT
Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter
Dimensions: 38*38 mm
Weight: 10.0g
BEC: 3.3V/1A; 5V/3A; 12V/3A

Wiring suggestion:
UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

Tips
1. F722 MCU has an inner inverter.
2. SBUSCRSFELRSIBUSDSM ETC... can be connected to any unused UART_RXwe suggest you connect to Uart_RX2
3. Frsky SmartPortTramp & Smartaudio can be connected to any unused UART_TXwe suggest you connect to Uart_TX1
4. F.port can be connected to any unused UART_TXwe suggest you connect to Uart_TX2

65A 4-IN-1 ESC
Specification:
Supports: PWM, Oneshot125, Oneshot42Multishot, Dshot150, Dshot300, Dshot600.
Firmware: AM_32
Mounting Holes: 30.5*30.5mm/4mm
Supports 2-8S lipo input
Telemetry Output: NO
Current sensor: Yes
Constant: 65 Amps
Current rate: 200
Burst: 80 Amps
Weight: 15.3g
MCU: BB21
BEC: No

PACKAGE INCLUDED:
1PC X DYS F722 FLIGHT CONTROLLER
1PC X DYS AM32 65A 4-IN-1 ESC
1SET X SILICON GROMMETS
1SET X WIRE HARNESS FOR F7 FLIGHT CONTROLLER
