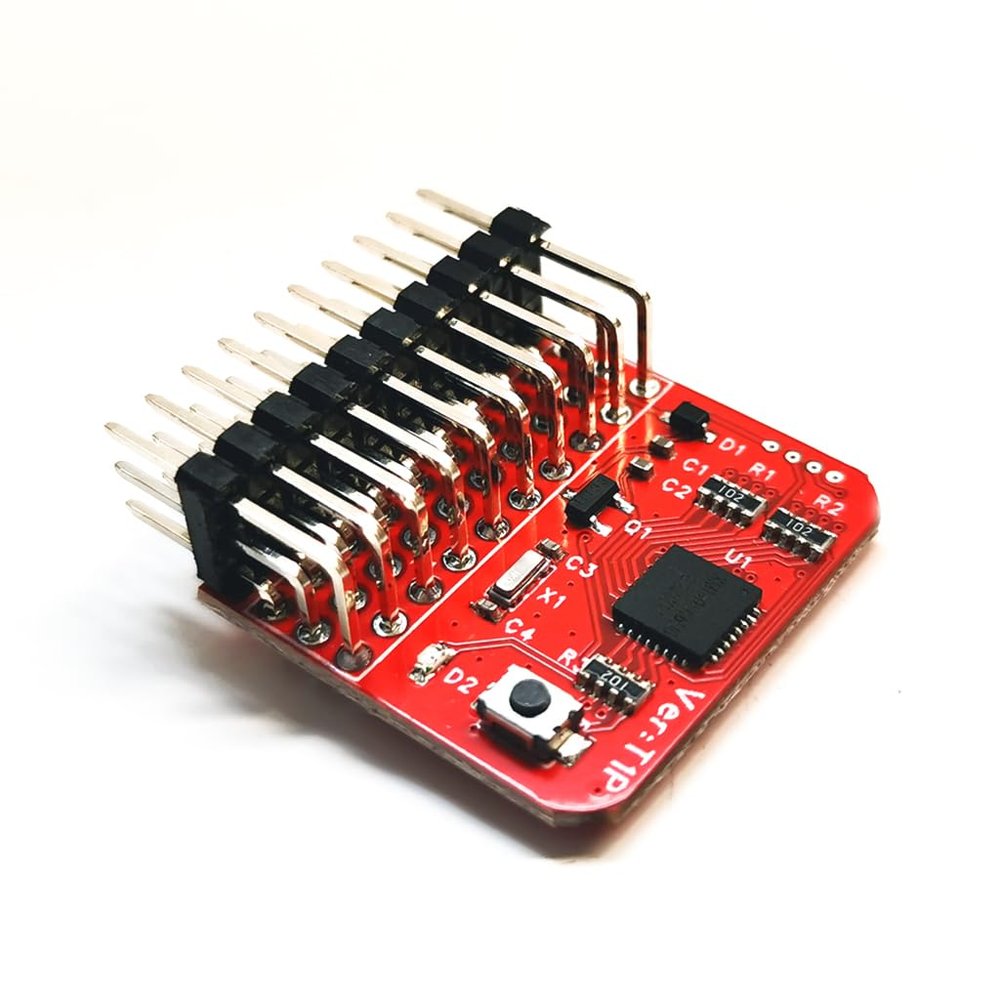

FEICHAO 8CH Receiver PWM-PPM Sbus Dbus S-Bus Coder Signal Converter Compatible with RC Phantom 2 Xaircraft Minix Superx V2

Description

• Support wide voltage input, VCC input voltage range of 3V-30V, recommended 5V.
• The module uses 32-bit ARM kernel MCU to collect and convert the signal, the speed is much faster than the ordinary 8-bit singlein the chip machine, all channel waveforms are collected and output by TIM hardware, with a stable accuracyin nanoseconds.
• All pins are protected against backconnection, including power backconnection will not burn.
• The input signal is automatically recognized without manual switching.
• SBUS signals output by receiver can be connected to flight control with one Y wire, and converted into PWM and PPM signals with Y wire on this module.

Parameters
Input voltage: 3V-30V (5V recommended)
Size : 25.8*24mm

Feature:
1. The module uses 32-bit ARM kernel MCU to collect and convert the signal, the speed is much faster than the ordinary 8-bit singlein the chip machine, all channel waveforms are collected and output by TIM hardware, with a stable accuracyin nanoseconds. Stability is not comparable to common open source Arduinoanalog waveforms.
2. All pins are protected against backconnection, including power backconnection will not burn.

Function:
Input PWM signal, output PPM and SBUS or CRSF signa
lnput PPM signal, output PWM and SBUS or CRSF signal
Input SBUS signal, output PWM and PPM or CRSF signal
lnput CRSF signal , output PWM and PPM or SBUS signal

Channel 1-8 is the input or output channel of PWM signal.
Channel 9 is the input channel for PPM or SBUS or CRSF signals.
Channel 10 is the output channel for PPM or SBUS or CRSF signals.
The input signal is automatically recognized without manual switching

Note:
1. The D-BUS output of compatible with DJI receiver is actually the same as SBUS
2. All signals can be connected in parallel to multiple devices.
For example, SBUS signals output by receiver can be connected to flight control with one Y wire, and converted into PWM and PPM signals with Y wire on this module.
