Description

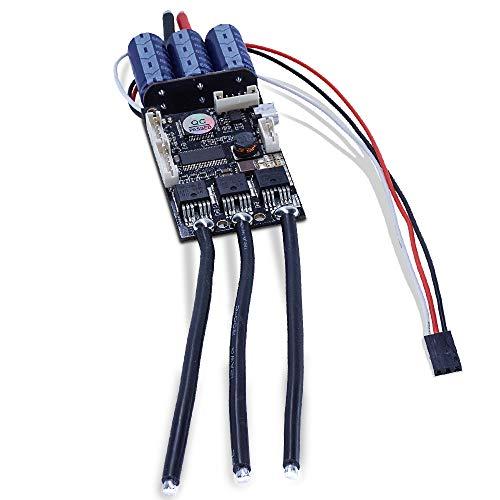

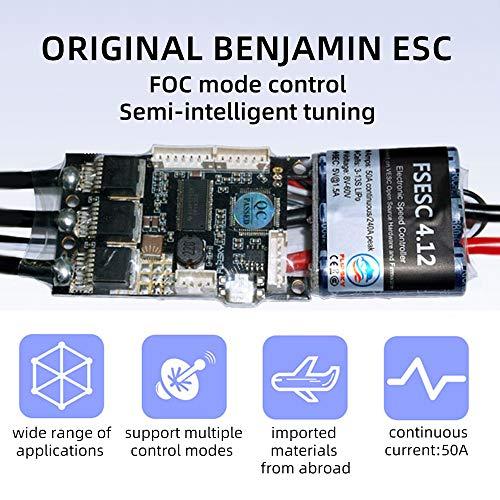

- Flexible ProgramableFlipsky ESC 4.12 Based upon the ESC Open Source Project and compatible with ESC Software which can be used flexibly ,highly modifiable.It can be widely used in Electric Skateboard Motor,e-scooter,ebike Esk8 DIY etc.
- High-performanceESC controller support sensorless motors to achieve smooth start-up from a stop , It also provides strong reliable and progressive electric braking
- High qualityElectric skateboard vesc 4.12 adopt 3pcs 68Ouf 63V capacitors to keep ESC perform the sensor cable stable when it speeds up or slows down.4-layer PCB Board design, gold-thickening process make flipsky vesc 4.12 more durable
- Independent Research & professional supportOur flipsky esc are self-developed, support customer customization, and provide professional technical support for your application
- Warm tipsIt is recommended to keep firmware 5.2 from factory ship, the new firmware upgrade may damage the ESC.
Hardware:V4.12
EPRM:60000
Firmware: V3.40(Keep upgrated with the latest firmware version)
PCB:4 layers, size: 40*60mm
Current: 50A continuous / 240A peak
Voltage: 8V-60V (Cells: 3-13S LiPo)
Recommended 10S battery
BEC: 5V@1.5A
BEC type: Internal driver support
Timing: Software calibration
Motor control interface: PPM signal (RC servo), analog, UART, I2C, USB or CANbus.
Cutoff Voltage: Programmable
Frequency: PWM input
Governor: No
Weight: 80g
FSESC4.12 Size: 110x40x20mm
Programming card: No
Reverse: Yes The shipping package contains: 1*FSECS4.12 1*Mini USB 1*ESC Sensor Wire 1*Manual
