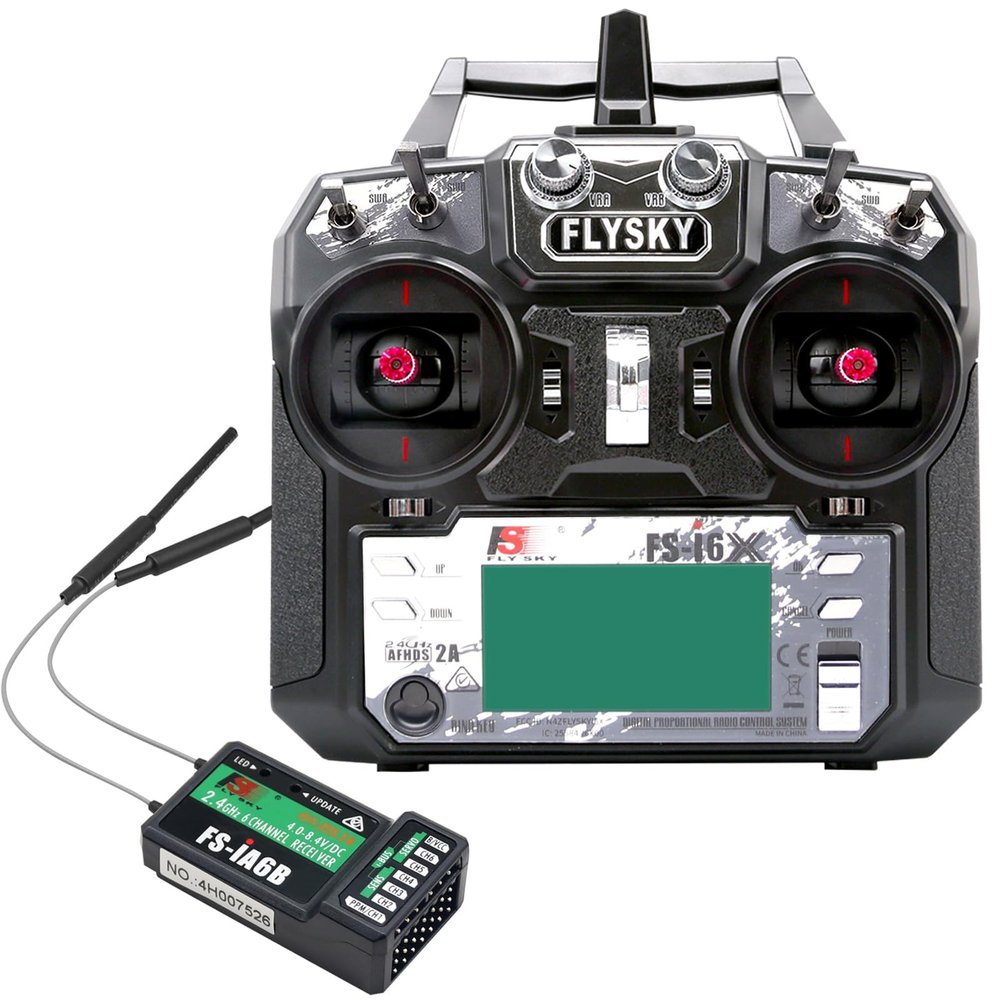

Flysky FS-i6X 6CH 2.4GHz RC Radio Transmitter Controller with iA6B Receiver for FPV Drone RC Helicopter Quadcopter Car Boat

Description

• Versatile ControlFlysky FS-i6x is default 6CH with fs-ia6b receiver, control over multiple servos or devices. Whether you need to control throttle, steering, pitch, roll, or other functions. If you need to open 10 channels, you will need to upgrade the ia6b receiver to the ia10b.
• AFHDS 2A Long-Range SystemFlysky i6X utilizes the Automatic Frequency Hopping Digital System. This protocol reduces signal interference and offers stable control over long distances, minimizes potential interference from other nearby electronic devices.
• LCD Screen and User InterfaceThe FS-i6X features a backlit LCD screen (with a relatively simple graphical interface), offers clear visibility, allowing users to easily navigate through menus, including channel assignments, dual rates, and exponential adjustments.
• Telemetry SupportThe i6X supports telemetry, which allows users to monitor real-time data such as battery voltage, signal strength, and other information. This data can help ensure a safe and well-informed flight experience, especially useful for more advanced models.
• Programmable Functions and MixesThe Flysky i6X transmitter features programmable mix functions, allowing users to create custom channel mixes, like mixing throttle with elevator for smoother transitions during maneuvers (common for airplanes or helicopters).

The Flysky i6X Transmitter with iA6B Receiver is a versatile and budget-friendly radio control system widely used for RC aircraft, drones, boats, and other remote-controlled devices.
Flysky FS-i6X Transmitter:
General Specifications:
Channels: 10 channels (expandable up to 10 from the default 6)
Frequency Range: 2.4052.475GHz
Modulation: GFSK (Gaussian Frequency Shift Keying)
Transmit Power: 20dBm (100mW)
Frequency Hopping: AFHDS 2A (Automatic Frequency Hopping Digital System)
Operating Voltage: 4.06.5V
Battery Requirement: 4 AA batteries (not included)
Control Range: Up to 1km in open areas (dependent on environment and receiver)
Display: Backlit LCD screen (128x64 resolution)
Antenna Type: Built-in dual antennas
Compatibility: Compatible with all Flysky AFHDS 2A receivers Firmware Upgradable: Yes, via USB
Physical Features:
Dimensions: 174 x 89 x 190mm
Weight: ~392g (without batteries)
Build Material: Durable plastic shell
Color: Black with ergonomic grips
Port Connectivity:
Micro-USB for firmware updates
Trainer port for training mode or simulation
Functions:
Programming Options: Supports dual rates, exponential, end-point adjustment, servo reversing, and mixing functions.
Telemetry Support: Built-in telemetry capability (with compatible telemetry-enabled receivers)
Model Memory: Stores up to 20 models
Fail-Safe Function:Configurable fail-safe options for safer operation
Modes: Configurable Mode 1 or Mode 2 (default: Mode 2)
Auxiliary Controls: Includes 2 knobs, 2 switches, and trim buttons for fine-tuning.
Flysky FS-iA6B Receiver:
General Specifications:
Channels: 6 (with PWM output)
Frequency Range: 2.4052.475GHz
Modulation: AFHDS 2A protocol
Operating Voltage: 4.06.5V
Input Power: From external BEC or ESC (via servo cables)
Output: PWM, PPM, and i-BUS (supports telemetry and other advanced features)
Control Range: Up to 1km in open areas
Antenna Type: Dual antennas for improved signal stability
Failsafe: Supported (programmable via the transmitter)
Dimensions: 47 x 26.2 x 15mm
Weight: ~14.9g
Telemetry Features:
Supports voltage and data telemetry with compatible sensors
i-BUS interface allows data feedback to the transmitter
Real-time feedback for battery voltage, signal strength, and more (if sensors are connected)
Key Features of the Flysky FS-i6X + FS-iA6B Combo:
User-Friendly Interface: Intuitive menu navigation via buttons and a backlit LCD screen.
Customizable Channels: Configurable channels, switches, and knobs for personalized operation.
Wide Compatibility: Works with drones, RC planes, helicopters, boats, and cars using the AFHDS 2A protocol.
Durable Build: Designed for long-lasting use in diverse environments.
Affordable & Reliable: Offers professional-grade features at a fraction of the cost of high-end systems.
Applications:
Entry-level to mid-level RC enthusiasts
FPV racing drones
RC planes, helicopters, and gliders
RC cars, trucks, and boats
Robotics requiring a remote control system
