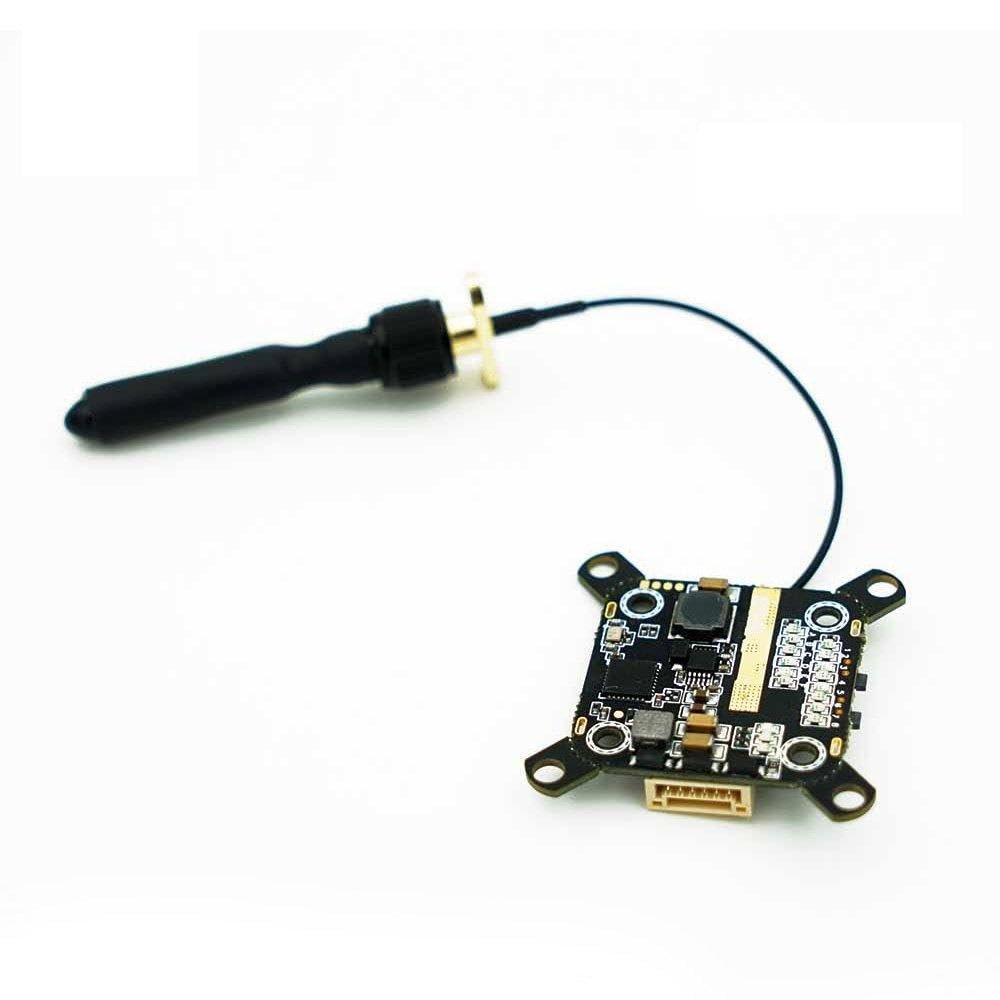

FrSky VS600 VTX with The Optional Mounting Hole Spacing

Description

• Pit Mode supported
• Small and portable
• Adjustable operating band
• Optional installation position
• Pigtail antenna installed

The VS600 is the first video transmitter developed by FrSky team. The 26 channel Video Transmitter features a very useful Pit Mode that allows the users to power it up at a low power (25mW) to change settings and conduct tests during racing events without the fear of interfering with live channels. Selecting your Operating Bands and Channels are easily adjusted with two push buttons and the indicator LEDs are easy to read. The Pigtail Antenna with UFL connection can easily be placed in the optimal location. Uniquely the VS600 has 2 different mounting hole options in 1 board, 31mm spacing and 20mm spacing. One of the most useful features is that all the setting can be fully adjusted via OpenTX Lua Script and the FrSky FreeLink App. SPECIFICATIONS Dimension Outer Frame
36*36*4.3 mm (L*W*H)
Inner Frame28*28*4.3 mm (L*W*H) Weight: 3.7g Transmission Frequency: 5.8 GHz Available Channel: 26CH Operating Voltage: DC 7V~28V Operating Current: 100mA@12V (25mW) Transmission Power: <0.01mW(Pit Mode) / 25mW
