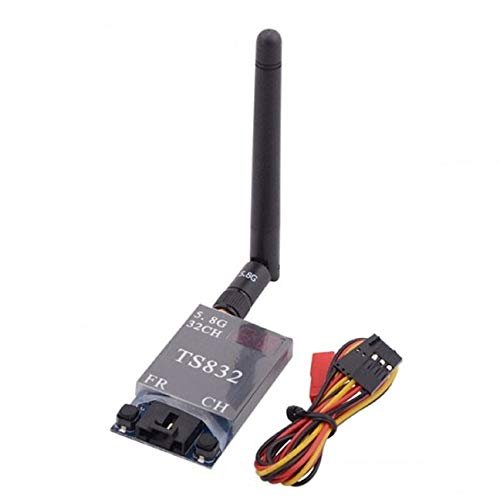

Hyperion 5.8GHZ TS832 600MW 32CH AV Transmitter

Description

• 600MW
• 32CH
• Compatible with Fatshark, ImmersionRC, Boscam, Foxtech and other generic branded FPV receivers within the same frequency range.

The TS832 Transmitter packs a whopping 600mW of ultra clean 5.8GHz power! A must for those looking for longer range and locked-in video. The TS832 is transmitting a full range of 32 channels and uses an easy to use 2 button interface, it also comes with antenna and a clean pre-wired harness, and only weighs in at a mere 21grams, its Perfect for a wide range of Aircraft, Quadcopters and your other projects!

Features 32 channels: Cover A, B, E and F bands Two switching buttons for the band and channel Two digits display for the band and channel Power off memory for last channel and band Dual Independent video and audio signal outputs Included in the package 1 x transmitting unit (TX) 1 x antennas (2db) 1 x power cable for TS832 1 x user manual Specifications Power input: 7.4-16V (3S Lipo / ~12v suggested) Outputs 12v (matches input voltage) Transmitting power: 600mW Antenna gain: 2db Working current: 220mA at 12V Video bandwidth: 8M Audio bandwidth : 6.5M No auido input on Tx (will not work with antenna trackers) Weight: 22g Dimension: 54x 32x 10mm (excluding antenna) Video format supported: NTSC/PAL Connector: RP-SMA Male Jack Frequency List FR1 (A): 5865M(CH1); 5845M(CH2); 5825M(CH3); 5805M(CH4); 5785M(CH5); 5765M(CH6); 5745M(CH7); 5725M(CH8) FR2 (B): 5733M(CH1); 5752M(CH2); 5771M(CH3); 5790M(CH4); 5809M(CH5); 5828M(CH6); 5847M(CH7); 5866M(CH8) FR3 (E): 5705M(CH1); 5685M(CH2); 5665M(CH3); 5645M(CH4); 5885M(CH5); 5905M(CH6); 5925M(CH7); 5945M(CH8) FR4 (F): 5740M(CH1); 5760M(CH2); 5780M(CH3); 5800M(CH4); 5820M(CH5); 5840M(CH6); 5860M(CH7); 5880M(CH8) Compatible with Fatshark, ImmersionRC, Boscam, Foxtech and other generic branded FPV receivers within the same frequency range.

*Note: TX antenna must be installed properly before it is switched on, power on without install antenna, or a improper antenna was used may
