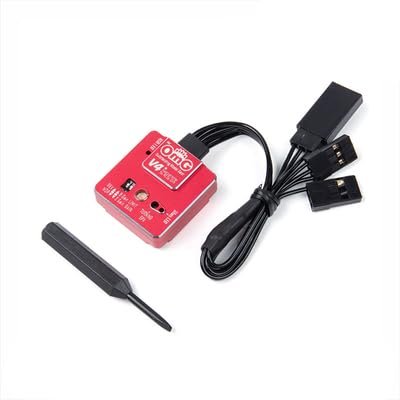

OMG V4 3-Axis RC Gyro PID-Controlled Stabilizer for RC Drift, Touring Cars F1 S.Bus Compatible, Adjustable EPA & Gain | Remote Control CAR, RC Drift Gyroscope Electronics (Red (OMG-GYRO-V4/RD))

Description

• Precision 3-Axis Gyro for RC Drift & Touring Cars Ensure stable drifts and accurate control on every turn.
• PID Control System Advanced motion correction for ultra-smooth RC performance.
• Supports S.BUS, SANWA SSR/SHR & PWM Wide compatibility with top-tier radio systems.
• EPA Endpoint Adjustment & Gain Control Fine-tune your performance via transmitter or potentiometer.
• Easy Setup with LED Indicators & Axis Direction Switch Customize your gyro setup quickly and intuitively.

*** V4 3-AXIS Gyro for Drift car and Touring Drift F1
1.Working voltage: 5V-8.4V
2.Consumption current: 6V 20mA
3.Support input signal: PWM50-333Hz/FUTABA S.BUS/SANWA SSR/SANWA SHR
4.Output servo signal: 1520uS333Hz/760uS(FUTABA SR)/SANWA SSR
Control system: PID control system
5.End Point Adjustment Function:EPA
6.Control Signal:SBUS/PWM
7.Receiver type:No restriction
V4 3-AXIS Gyro for Drift car and Touring Drift F1
Working voltage: 5~ 8.4V
Consumption current: 6V 20mA
Working temperature: -10 + 50
Support input signal: PWM50-333Hz/FUTABA S.BUS/SANWA SSR/SANWA SHR
Output servo signal: 1520uS333Hz/760uS(FUTABA SR)/SANWA SSR
Control system: PID control system
End Point Adjustment Function: EPA
Control Signal:SBUS/PWM
Receiver type:No restriction
Dimension: 25*26*10mm
Weight: 12g

*** Instruction of Function Switch:
1.EPA(Travel Setting)
Press the "SW" switch to power on,yellow LED blinks slowly.Entering to the servo travel setting,rotate the remote control steering wheel to make servo stop at the desired position(turn left/turn right).Short press"SW" switch,yellow LED blinks 2 times quickly,red LED becomes solid,and green LED blinks slowly,it means current travel has been saved.Then rotate the remote control steering wheel to make the servo stop at the other desired position,short press the switch ,yellow LED blinks 2 times quickly,and then the yellow LED turns on,it means current travel has been saved as well.2 seconds later,the gyro will automatically enter into initialization mode,once completed,gyro is ready for use.
2.Reset(Travel Restore Default Setting)
Press the "SW" switch to power on and enter into the travel setting mode.After pressing and holding the switch for 3 seconds,the yellow LED starts to blinks alternately.Restore to default after 2 seconds. Then it will enter into initialization mode,once initialization is completed,the gyro is ready for use.
3.Gain signal input or potentiometer adjustment is determined when the power is turned on. If loss of signal happened during using,the last signal is retained.
4.Suitable for most of remote control systems,while plug in the gain wwire,it can adjust the sensitivity by transmitter;while do not plug in the gain wire,the gyro's potentiometer can be used for gain adjustment.
5.Suitable for FUTABE S.BUS & SANWA SSR
6.Adjust the gain via gain channel of transmitter(default for S.BUS input),the range if from -100%~0~+100%.
7.While do not plug in the gain wire,the gyro's potentiometer can be used for gain adjustment,range from 0~100%.
8.After powering on,press the SW for a while,LED2 flash(next to the SW),then short press the SW,and choose the direction of the X/Y/Z axis.

*** LED Status Display:
3 Axis LED Status
Red quick flash : Initialization
Yellow quick flash: Loss of control signal
Green solid light: Small gain mode/Gain signal input
Green slow flash : Small gain mode/Potentiometer adjustment
Blue solid light: Big gain mode/Gain signal input
Blue slow flash: Big gain mode/Potentiometer adjustment
Yellow slow flash: Travel set mode
