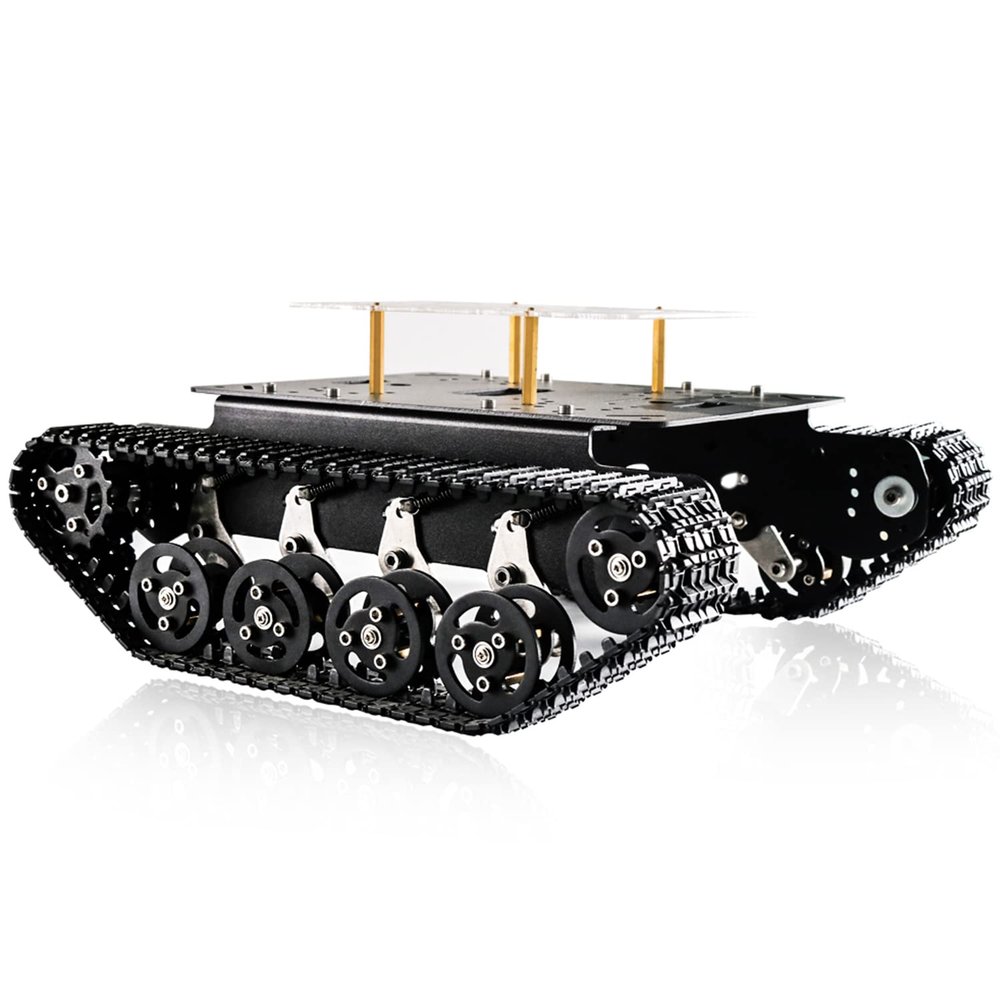

Professional Shock-Absorbing Smart Metal Robot Tank Car Chassis Kit for Arduino/Raspberry, Tracked Suspension Absorption Vehicle, Remote Control Track Crawler Damping Vibration Caterpillar

Description

• Shock Absorption Tank Chassis: This shock absorbing tank car chassis has 10 pcs bearing wheels, 2pcs driving wheels, in which, 8pcs bearing wheels with 8pcs springs and suspension supporting holders with damping suspension system function. More than 20pcs bearings, to make this tank car chassis runs smoothly with little friction.
• Professional Design: The metal panel is specially designed for the general control board, compatible with Arduino uno / NodeMCU / Raspberry pie, which makes you assemble the controller board perfectly. Also, reserve many other installation hole locations for servos, sensors, and other electronics board. Specially, this metal panel also can be assembled into the wheel car with 25/37 motor brackets.
• High Torque DC Motor: Engine is very important for the car chassis. So, one pair high torque DC motor with encoder is equipped with this shock absorption robot tank car chassis. By using the encoder, you can get the speed, wheel rotation, and other feedback, which will enable you to do more research work.
• Lear More: You can know the robot structure after you assemble the robot tank chassis kit, which includes DC encoder motor, frame, wheel, shock suspension system. After that, you can learn how to remote control the tank by the controller, compatible with Arduino, Raspberry pie, Microbit, together AI robot for automatic driving with many sensors.
• What You Get: This tank car chassis have many accessories, like bearing, driving and bearing wheels, track, metal frame, screw kit, and wrench tools. Therefore, please be patient to assemble the robot chassis according to the manual attached to this link. If have any problem, please dont hesitate to contact us. We will reply you within 24h.

Professional Shock Absorption Metal Robot Tank Car Chassis Kit with DC Encoder Motor for Arduino / Raspberry Pie
Introduction
Chassis suspension (suspension) system is the general name of all force transfer devices between the frame and the axle or wheel. The main function of suspension is to transfer all forces and moments between the wheel and the body, such as supporting force, braking force and driving force, and ease the impact load transmitted to the body from uneven road surface, and attenuate the vibration caused by it Ensure the comfort of passengers, reduce the dynamic load of cargo and vehicle itself.

Tank Chassis Parameters Size: 275*190*95mm/ 10.83*7.48*3.74in (length*width*height) Net weight: about 1.1kg/ 2.43lb Working voltage: 9-12v Load weight: 3-5 kg Material: aluminum alloy Track: engineering plastic (4.1cm wide, freely removable) Drive wheel: metal Bearing wheel: metal Independent damping system

Motor Parameters Name: 25mm gear motor Output speed: 15010%rpm No_load current: 200mA (Max) Stall current: 4500mA(max) Stall torque: 9.5kgNaN Rated speed: 10010%rpm Rated torque: 3000gNaN Rated current: 1200mA (Max) Noise: 56dB Working voltage: 9-12V Outside Shaft Length: 14.5mm Shaft End Play: 0.05-0.50mm Screw Size:M3.0 Dia. Of Shaft phi 4mm, D3.5 Encoder: 6pulses/circle Working voltage for sensor: 3-5V

Shipping List Metal part: 1set Bearing wheel: 10pcs Driving wheel: 2pcs Plastic track: 2pcs Encoder DC motor: 2pcs Screws kit: 1set Others: several
